Using Apache HTTP Server as a reverse proxy allows it to forward client requests to other servers and deliver the responses back to the clients. This is useful for load balancing, isolating backend services, or hiding server details.
For RPM/CentOS-based Systems
Script copied
[root@testing ~]# sudo yum install httpd
Script copied
[root@testing ~]# cat /etc/httpd/conf.modules.d/00-base.conf | grep LoadModule

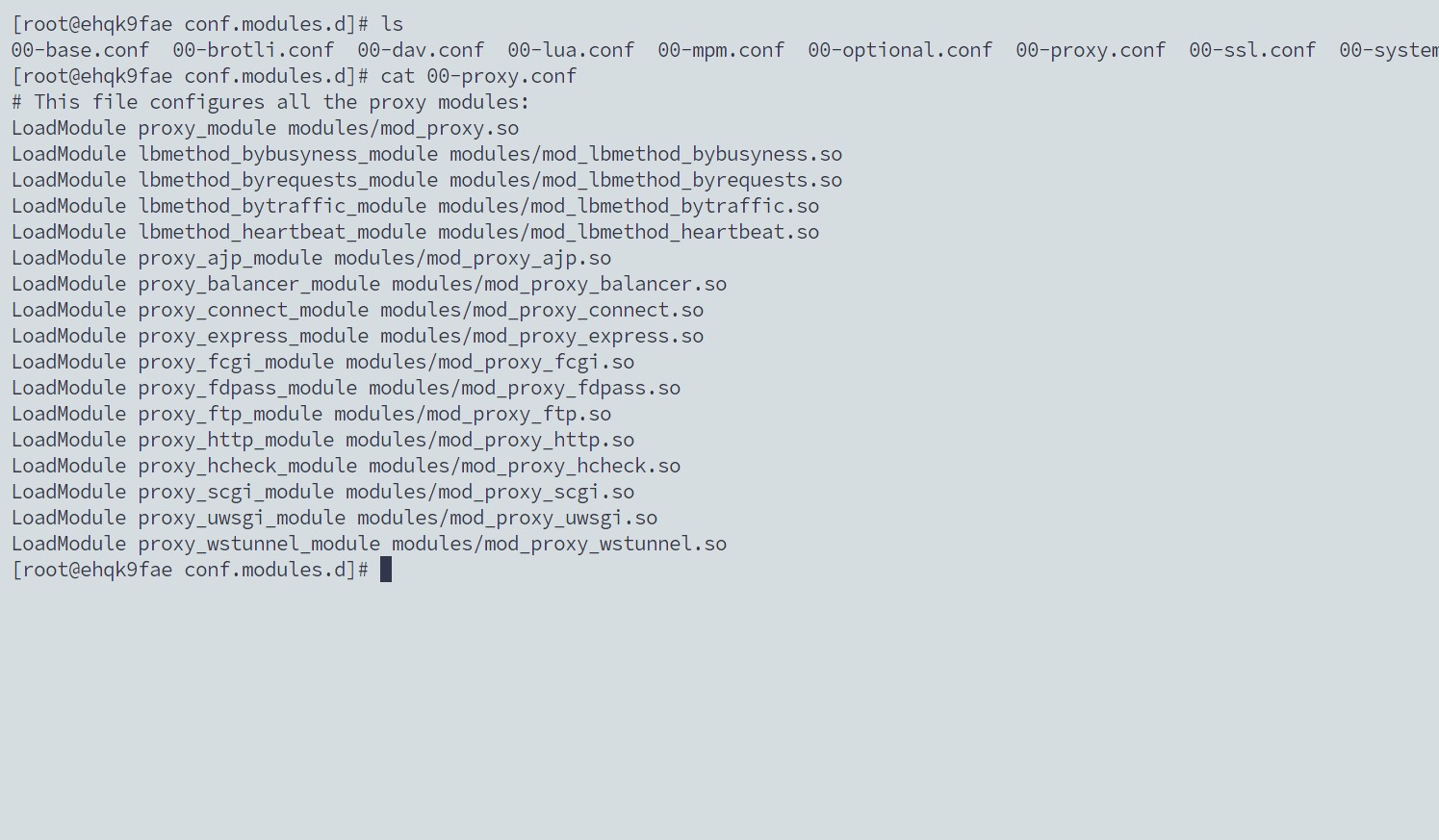

This screenshot is to make sure that the following modules are available in your OS for reverse proxy
Script copied
LoadModule proxy_module modules/mod_proxy.so LoadModule proxy_http_module modules/mod_proxy_http.so LoadModule proxy_balancer_module modules/mod_proxy_balancer.so LoadModule lbmethod_byrequests_module modules/mod_lbmethod_byrequests.so
Create a reverse proxy conf file
Script copied
[root@testing ~]# sudo nano /etc/httpd/conf.d/reverse-proxy.conf
Copy this content and add it in the above .conf file
Note: In this Port: 8080 is where the custom application is running
Script copied
<VirtualHost *:80>
ServerName application.domain.com
ProxyPreserveHost On
ProxyPass / http://127.0.0.1:8080/
ProxyPassReverse / http://127.0.0.1:8080/
ErrorLog /var/log/httpd/application_http_error.log
CustomLog /var/log/httpd/application_http_access.log combined
</VirtualHost>
# HTTPS (Port 443) Configuration
<VirtualHost *:443>
ServerName application.domain.com
SSLEngine on
SSLCertificateFile /etc/ssl/application/ssl.crt
SSLCertificateKeyFile /etc/ssl/application/private.key
ProxyPreserveHost On
ProxyPass / http://127.0.0.1:8080/
ProxyPassReverse / http://127.0.0.1:8080/
ErrorLog /var/log/httpd/application_https_error.log
CustomLog /var/log/httpd/application_https_access.log combined
</VirtualHost>

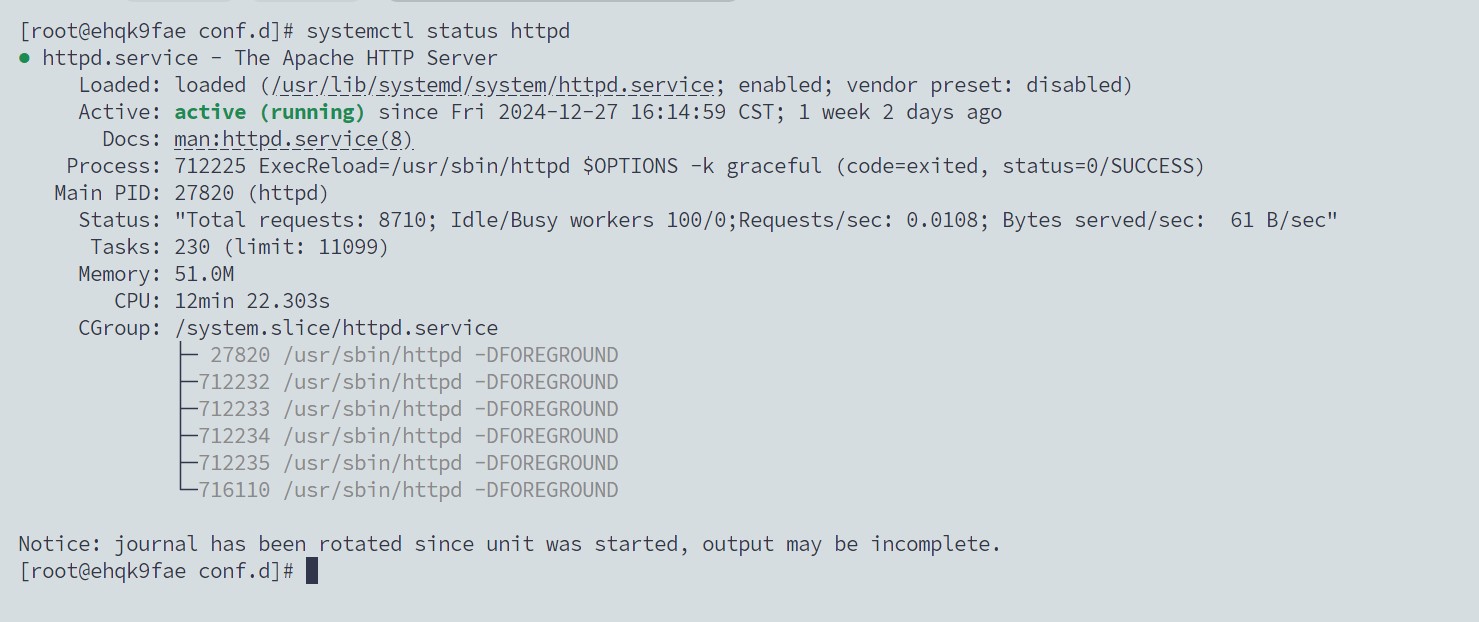

Restart the Apache HTTPD after saving the conf file
Script copied
[root@testing ~]# sudo systemctl restart httpd
For Debian/Ubuntu-based Systems
Script copied
[root@testing ~]# sudo apt install apache2
Script copied
[root@testing ~]# sudo a2enmod proxy && sudo a2enmod proxy_http && sudo a2enmod proxy_balancer && sudo a2enmod lbmethod_byrequests && sudo systemctl restart apache2
Script copied
[root@testing ~]# sudo nano /etc/apache2/sites-available/reverse-proxy.conf
Script copied
[root@testing ~]# sudo a2ensite reverse-proxy.conf
Script copied
[root@testing ~]# sudo systemctl reload apache2
